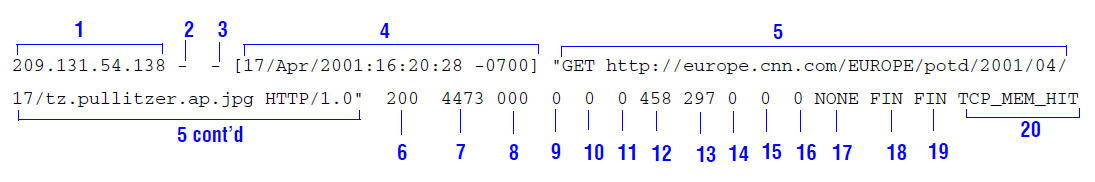

The following figure shows a sample log entry in an extended2.log file. The following list describes each field.

17

phr

The proxy hierarchy route; the route Traffic Server used to retrieve the object.

18

cfsc

The client finish status code: FIN if the client request completed successfully or INTR if the client request was interrupted.

19

pfsc

The proxy finish status code: FIN if the Traffic Server request to the origin server completed successfully or INTR if the request was interrupted.

20

crc

The cache result code; how the Traffic Server cache responded to the request: HIT, MISS, and so on. Cache result codes are described here.
