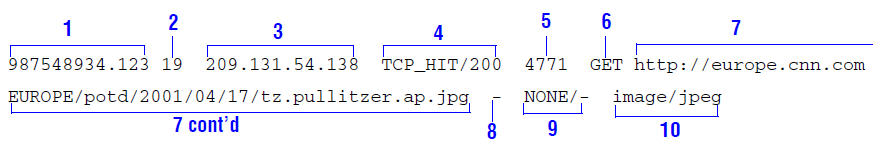

The following figure shows a sample log entry in a squid.log file.

The following list describes each field.

1

cqtq

The client request timestamp in Squid format; the time of the client request in seconds since January 1, 1970 UTC (with millisecond resolution).

2

ttms

The time Traffic Server spent processing the client request; the number of milliseconds between the time the client established the connection with Traffic Server and the time Traffic Server sent the last byte of the response back to the client.

3

chi

The IP address of the client’s host machine.

4

crc/pssc

The cache result code; how the cache responded to the request: HIT, MISS, and so on. Cache result codes are described here.
The proxy response status code (the HTTP response status code from Traffic Server to client).

5

psql

The length of the Traffic Server response to the client in bytes, including headers and content.

6

cqhm

The client request method: GET, POST, and so on.

7

cquc

The client request canonical URL; blanks and other characters that might not be parsed by log analysis tools are replaced by escape sequences. The escape sequence is a percentage sign followed by the ASCII code number of the replaced character in hex.

8

caun

The username of the authenticated client. A hyphen (-) means that no authentication was required.

9

phr/pqsn

The proxy hierarchy route; the route Traffic Server used to retrieve the object.

The proxy request server name; the name of the server that fulfilled the request. If the request was a cache hit, then this field contains a hyphen (-).

10

psct

The proxy response content type; the object content type taken from the Traffic Server response header.

Squid- and Netscape-format: Cache Result Codes

The following table describes the cache result codes in Squid and Netscape log files.

TCP_HIT

A valid copy of the requested object was in the cache and Traffic Server sent the object to the client.

TCP_MISS

The requested object was not in cache, so Traffic Server retrieved the object from the origin server (or a parent proxy) and sent it to the client.

TCP_REFRESH_HIT

The object was in the cache, but it was stale. Traffic Server made an if-modified-since request to the origin server and the origin server sent a 304 not-modified response. Traffic Server sent the cached object to the client.

TCP_REF_FAIL_HIT

The object was in the cache but was stale. Traffic Server made an * if-modified-since request to the origin server but the server did not respond. Traffic Server sent the cached object to the client.

TCP_REFRESH_MISS

The object was in the cache but was stale. Traffic Server made an * if-modified-since request to the origin server and the server returned a new object. Traffic Server served the new object to the client.

TCP_CLIENT_REFRESH

The client issued a request with a no-cache header. Traffic Server obtained the requested object from the origin server and sent a copy to the client. Traffic Server deleted the previous copy of the object from cache.

TCP_IMS_HIT

The client issued an if-modified-since request and the object was in cache & fresher than the IMS date, or an if-modified-since request to the origin server revealed the cached object was fresh. Traffic Server served the cached object to the client.

TCP_IMS_MISS

The client issued an
if-modified-since request, and the object was either not in cache or was stale in cache. Traffic Server sent an
if-modified-since request to the origin server and received the new object. Traffic Server sent the updated object to the client.

TCP_SWAPFAIL

The object was in the cache but could not be accessed. The client did not receive the object.

ERR_CLIENT_ABORT

The client disconnected before the complete object was sent.

ERR_CONNECT_FAIL

Traffic Server could not reach the origin server.

ERR_DNS_FAIL

The Domain Name Server (DNS) could not resolve the origin server name, or no DNS could be reached.

ERR_INVALID_REQ

The client HTTP request was invalid. (Traffic Server forwards requests with unknown methods to the origin server.)

ERR_READ_TIMEOUT

The origin server did not respond to Traffic Server's request within the timeout interval.

ERR_PROXY_DENIED

Client service was denied.

ERR_UNKNOWN

The client connected, but subsequently disconnected without sending a request.
